DS 205

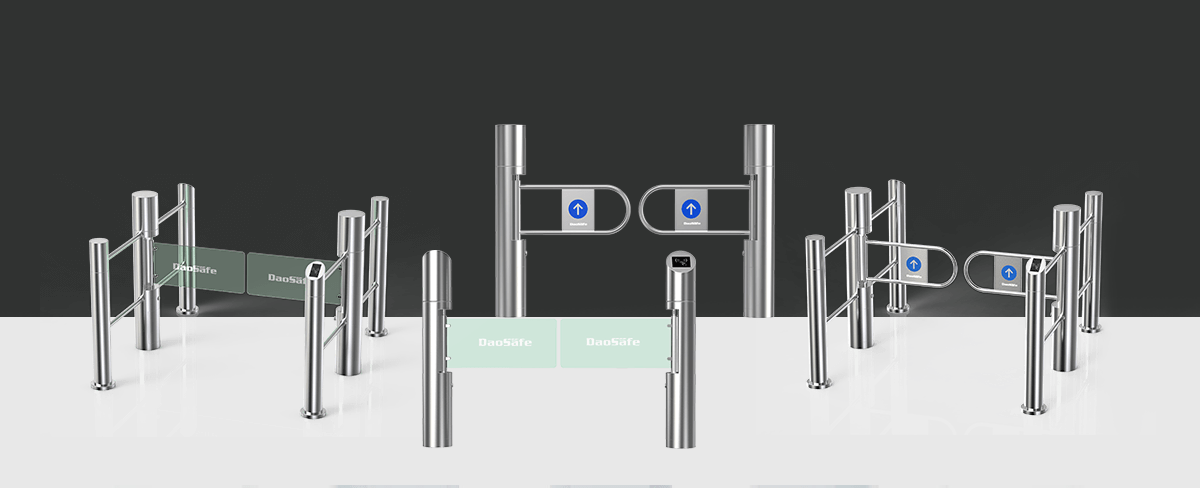

Swing turnstile DS205 is designed to control entering or exiting in indoor and outdoor restricted areas. It’s bi-directional setting. The whole body is made from brushed stainless steel; Arm material is plexiglas or stainless steel (based on customer’s order) The body is very slim and compact, so it’s not easy to install external device, like biometric device, card collector, coin insert ect., usually a manual type. The passage width can make to 1200mm, which supports wheelchair, pedestrian with large luggage, bicycle and pram. This model is very common to be used in supermarkets and shops.
Features
-
Long-life performance
The whole system runs smoothly, long-life performance, high operation dependability and fast response
-
Alarm function
Alarm function, in case of illegal intrusion and reverse intrusion (optional)
-
Sensor
Infrared sensor to prevent pinch pedestrians (optional)
-
Anti-breakthrough function
Anti-breakthrough function. The gate is locked automatically until opening signal received
-
Anti-trailing function
Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card (optional)
-
Automatic reset function
Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
-
Power
When power is off, optical turnstile will open automatically, which is complying with fire safety requirements
Specifications
- Operation
Single directional or Bi-directional is selectable
- Framework material
304 quality stainless steel.
- ARM material
Plexiglass/Stainless Steel
- MCBF
5 million
- Emergency Mode
Automatic arm open when power off
- Communication
Dry Contact, Relay signal, RS485
- Passage Speed
30 persons/minute.
- Passage Width
600-900mm
- Power Consumption
40W
- Operating voltage
24V DC
