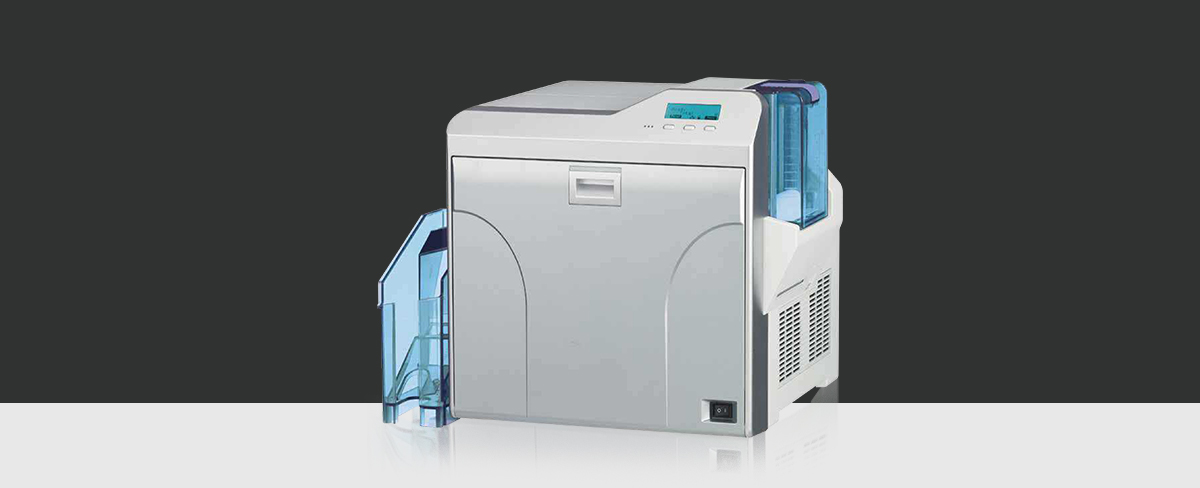

DNP CX-D80 SERIES

As the latest in the CX Series, the printer delivers the maximum impact and ease-of-use with glossy photo, real edge-to-edge printing, remains free of head-damage and offers real versatility all with an extreme smaller body design. DNP CX-D80HS/CX-D80DS/CXD80SRS have a thermal retransfer printing engine of which quality and reliability are acclaimed by users worldwide.

Features

  • IP Sec

    IP Sec prevents stealing information of printed data via network connection.

  • Security Erase

    It makes the personal info hard to read and makes disposal of used ribbon easily. Besides YMCK, Security Erase is now available at YMCKK and YMCKUv ink ribbon.

  • Dye-Sub UV ink

    UV ink makes complete invisible print by flat print portion compared to resin UV. It enhances protection of forgery cards

  • Security Lock

    Self type lock for card hopper and front door set via Status Monitor is equipped. And what's more, Kensington lock is equipped to guard your printer.

Specifications

  • Dimension

  • 343 x 322 x 335 mm (w x d x h)

  • Weight

  • 13.0 kg (Single side without optional unit)
    15.5 kg (Dual side with all optional units installed)

  • Power supply

  • Maximum 3.5A (100 to 120V)
    Maximum 1.6A (220 to 240V)

  • Operating conditions

  • Temperature 15° to 30°;
    Humidity 35% to 70% non condensing

  • Printing method

  • Dye sublimation / resin thermal retransfer

  • Resolution

  • .600dpi-CX-D80HS
    300dpi - CX-D80SRS (Single sided printing)
    300dpi - CX-D80DS (Double sided printing)

  • Printable area

  • Full bleed (Real edge-to-edge)

  • Print speed

  • About 30 sec: YMCK with transfer

  • Interface

  • USB (Ver2.0) Full-Speed (12Mbps)/ Hi-Speed (480Mbps)
    10BASE-T/100BASE-TX ethernet

  • Card

  • Size: CR-80 ISO 7810 (54.0 mm x 85.6 mm)
    Type: PVC, Composite PVC, PET-G,
    Polycarbonate (Note: firmware installation is required)

  • Input & output capacity

  • 100 cards each (0.76 mm)

  • Supported platform

  • Windows 2000 Professional (SP4), XP (SP3),
    Vista (SP2), Windows 7 (SP1),
    Windows 8/8.1, Windows 10,
    Windows Server 2003 (R2 SP2),
    Server 2008, Server 2012

  • Ink ribbon

  • YMCK (1.000 images), YMCKK (750 images)
    YMCKUV (750 images), YMCKPO (750 images)

  • Traceable functions

  • In the new models of printers and ribbons traceable functions are added to improve maintenance quality. Following these changes, it may not work properly if the distribution route of the printers and the ribbons are different.

  • Options

  • Magnetic stripe encoding (HiCo/LoCo)
    Contact chip encoding (case & reader/writer)
    Contactless encoding
    Bend remedy unit
    Lamination unit (CL-600S/D)

  • Safety regulations

  • FCC, CE, UL, VCCI-B, FCC Class B, EN Class B,
    RoHS, CCC
