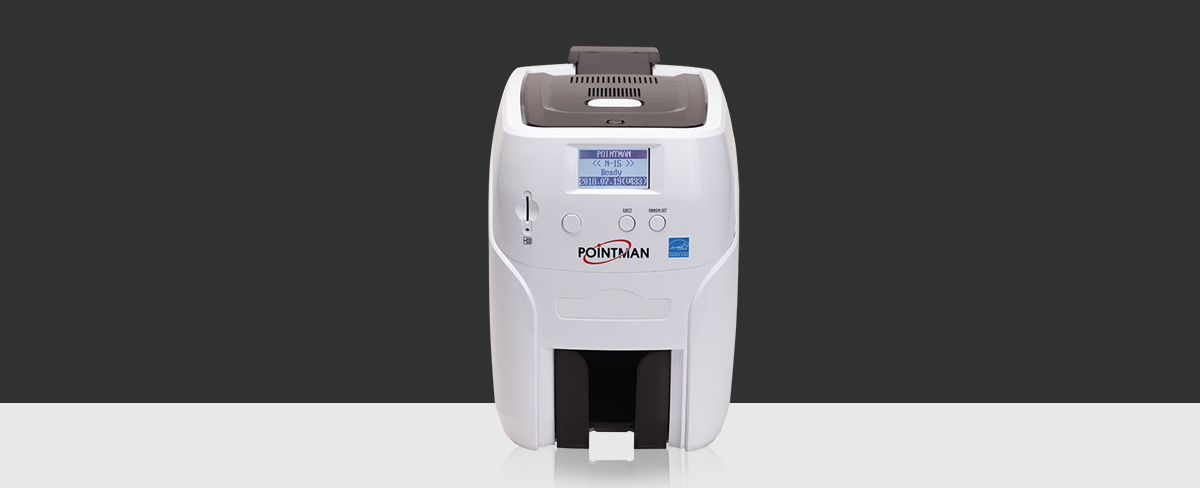

Nuvia ID CARD PRINTER N15
Affordable printer for ID badges & Banking Card
Single / Dual(optional) sided printing
Smaller foot print & Light weight
Secure Magnetic Stripe encoding
Contact & contactless smart card encoding
Rewrite function(Option)
Features
-
Main Features
Auto feed & Single hopper
High Security : Kensington® physical lock,
Multiple enclosures locks
Compact design, light weight
Wi-Fi option & Mobile application
Specifications
Print Technology
1. Direct-to-card dye-sublimation / Resin thermal transfer
2. Single sided, Dual sided(N25 only, factory upgradable
Print Resolution- Ribbon
Color Ribbon
1. YMCKO : 200 prints/roll , 250 prints/roll
2. YMCKOK : 170 prints/roll , 210 prints/roll (N25 only)
3. Half YMCKO: 400 prints/roll- Printer Encoding Option
Magnetic Stripe Encoding
1. ISO 7811 (Track 1, 2, 3) , JIS II. Coercivity: HiCo/LoCo
Contact Smart Card Encoding
1. ISO7816, EMV Level 1(PC/SC or Serial)
Contactless Smart Card Encoding
1. Mifare, ISO 14443 A / B, Desfire, NFC, Felica (PC/SC or Serial) *Other encoding options are available upon request.
SAM
1. PLCC 1 (Extra-1 Sockets), SIM 4 sockets
Mobile Chip Card
1. ISO 7816- Printer Specifications
Power
1. Input: 100-240V 50/60Hz 1.7A
2. Output: DC 24.3V 2.5A
Temperature
1. Operating: 15~35°C / 59~ 95°F (Color printing), 15~40°C / 59~ 104°F (Mono printing)
2. Storage: -10~60°C / 14~140 °F
Humidity
1. Operating: 20 ~ 65 % non-condensing
2. Storage 20 : ~ 70 % non-condensing
Font
1. True Type Fonts via Windows Drivers
Memory
1. 128MB RAM
Interface USB2.0 (High-Speed), Built in 10/100 Ethernet
Operation System
1. for Printer Driver Windows ®10/8.1/8/7/Vista/XP/Server 2012, 2012 R2, 2008, 2008 R2, 2003
Certifications
1. FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, KCC Energy STAR, RoHS
Security
1. Kensington ® physical lock / Hopper lock(optional), Printer lid lock(optional)
Software
1. Card Designer 2.0™
Limited Warranty
1. Printer - 2 years, Printer Head - 2 years
